Home EQUIPMENTS Milling machine DOF Milling Machine CRAFT 5X

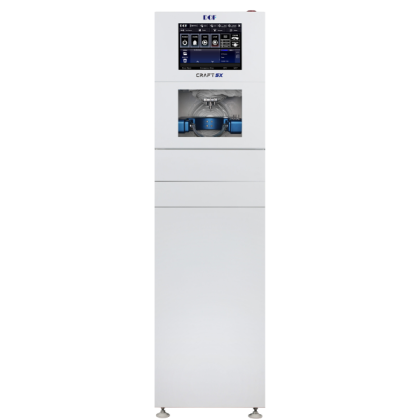

DOF Milling Machine CRAFT 5X

Call for price +359 878 810 817
  • Code:
    CRAFT_5X

Key Advantages of CRAFT 5X

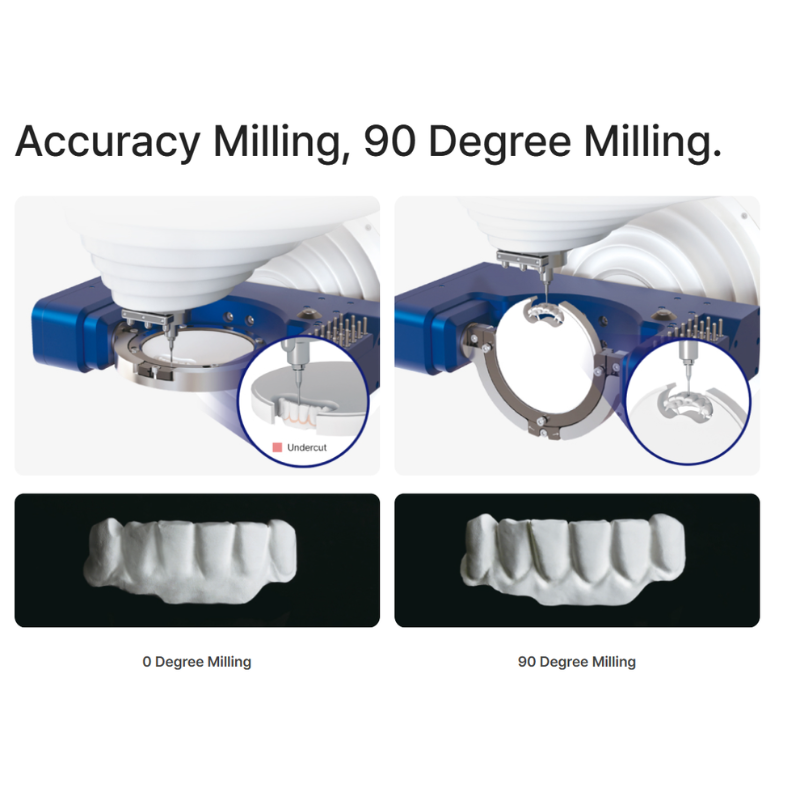

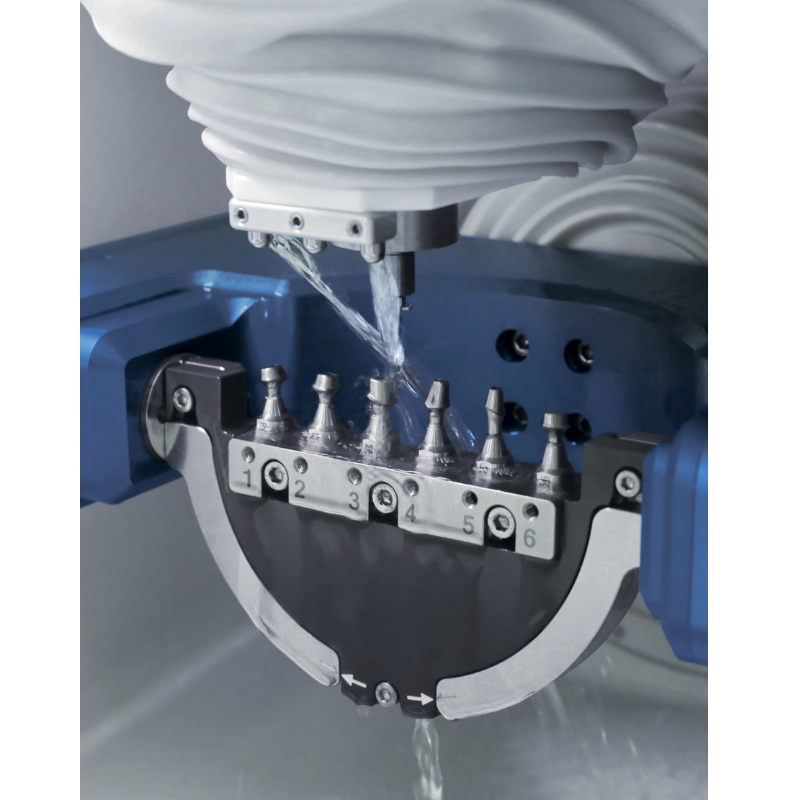

5-Axis Milling System
CRAFT 5X uses a 5-axis milling system with A-axis ±360° and B-axis ±25°, allowing access to complex geometries and undercuts. This ensures high precision when manufacturing crowns, bridges, and implant restorations.

High-Speed Spindle
The machine is equipped with a high-speed spindle that enables fast and precise milling, reducing the production time of dental restorations.

Wide Material Compatibility
CRAFT 5X can process various dental materials, including zirconia, PMMA, wax, composite materials, and hybrid ceramics.

All-in-One System
CRAFT 5X is an all-in-one milling machine with a built-in compressor and dust collector, simplifying installation and optimizing laboratory workspace.

CAD/CAM Integration
Compatible with CAD/CAM systems such as hyperDENT and Millbox,

Add to wishlist
Brand:
Compliance Information
Dimensions
Machine
440mm x 710mm x 660mm (W x H x D)
Table
436mm x 1000mm x 660mm (W x H x D)
Weight
Machine
75kg
Table
70kg
Spindle
Manufacturer
Jäger
Shank
Maximum RPM
100,000 rpm
Maximum Power
0.75kw
Tool Capacity (Max.)
21
Number of Pre-milled Simultaneous Milling
10
Number of Reverse Type Pre-milled Simultaneous Milling
6
Number of Glass Ceramic Simultaneous Milling
6
Number of Hybrid Ceramic Simultaneous Milling
12
Required Power
1.5kw
Material Compatibility
Zirconia, wax, PMMA, PEEK, composite, resin, hydrid ceramic, glass ceramic, pre-milled titanium abutment
