Product name

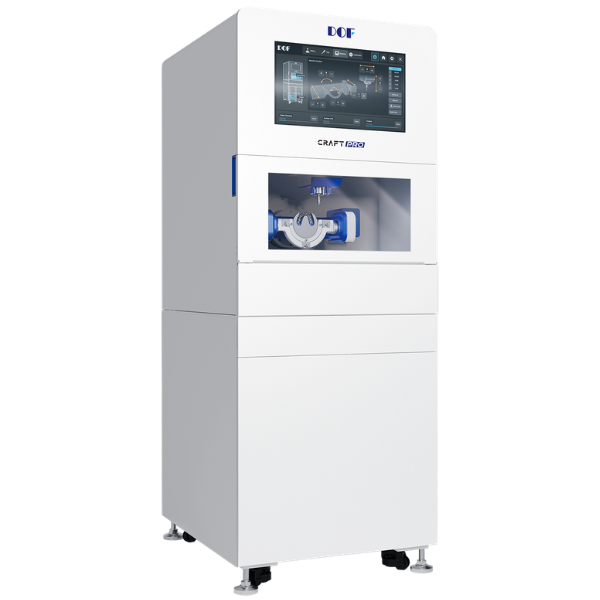

CRAFT PRO
Function
TrueMotion
5-axis AC servo motor | 0.5μm linear scale
Spindle power
Up to 3.6kW / 60,000 RPM
Tool Capacity (Max.)
40ea
Network connection
Wired LAN + Wi-Fi (Mobile Motion App / DOF SYNC)
Compatible materials
Titanium, Co-Cr Disk, Pre-milled, Zirconia, PMMA, PEEK, Wax, Glass Ceramics, Resin
Wet/Dry Milling
Wet: From 3 nozzles Coolant sprayed by AC motor Dry: 5-level suction control Compatible dust collector
Maximum tilt
A-axis ±360° / B-axis ±35°
Operating environment
21.5-inch screen Motion App 3.0
Dimensions (W x D x H)
Machine: 725 x 901 x 992 mm Table: 725 x 901 x 883 mm
Weight
Total 350kg
CAM software
hyperDENT, Millbox
Power consumption
220V, 16A
Minimum compressor specifications
50L per minute, 7 bar

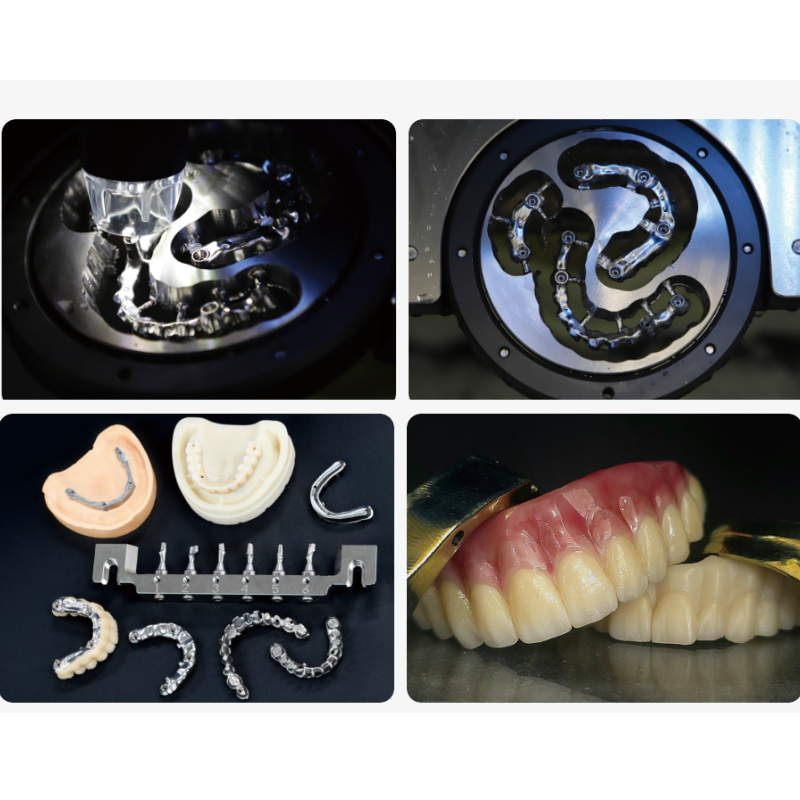

Machining material & indications
